Product Description
White Ball Clay is a high-purity clay material with excellent plasticity, fluidity, and binding ability. With stable quality comparable to European "Ball Clay" standards, our white ball clay is composed primarily of disordered kaolinite with very fine particle size distribution.
Manually selected high-grade white clay ensures consistent quality and superior performance in demanding applications. The material combines exceptional workability with high refractoriness, making it ideal for refractory applications.
Key Quality Features: Extremely low iron oxide and impurity content, very fine particle distribution (–2 μm < 92%), excellent plasticity index (28–32), and refractoriness exceeding 1700 °C. Perfect for premium refractory applications requiring superior performance.
Physical Properties
- Excellent plasticity, fluidity, and binding ability
- High purity and stable quality, similar to European "Ball Clay"
- Main mineral composition: disordered kaolinite
- Very fine particle size (–2 μm < 92%)
- Superior workability in casting and molding
- Consistent particle size distribution
Chemical Composition
- Al₂O₃: 30–35%
- Fe₂O₃: 1.5–2% (extremely low)
- Refractoriness: > 1700 °C
- Plasticity Index: 28–32
- Extremely low content of iron oxide and other impurities
Grades & Applications
- Special grade for refractory castables and gunning mixes
- Suitable for casting materials and high-refractoriness bricks
- Raw material for advanced ceramic products
- Binder in refractory monolithic applications
- Foundry sand bonding applications
- Premium clay for technical ceramics
Technical Specifications
Chemical Composition Analysis
| Component | Content Range (%) | Typical Value (%) |
|---|---|---|
| Al₂O₃ | 30–35 | 31–33 |
| SiO₂ | Balance | ~50–55 |
| Fe₂O₃ | 1.5–2.0 | 1.7–1.9 |
| TiO₂ | <2.0 | 1.6–1.9 |
| Other Impurities | Trace | Minimal |
Key Physical Properties
Refractoriness
> 1700 °C
Plasticity Index
28–32
Particle Size
–2 μm < 92%
Main Mineral
Disordered Kaolinite
Purity
High Grade
Iron Content
Extremely Low

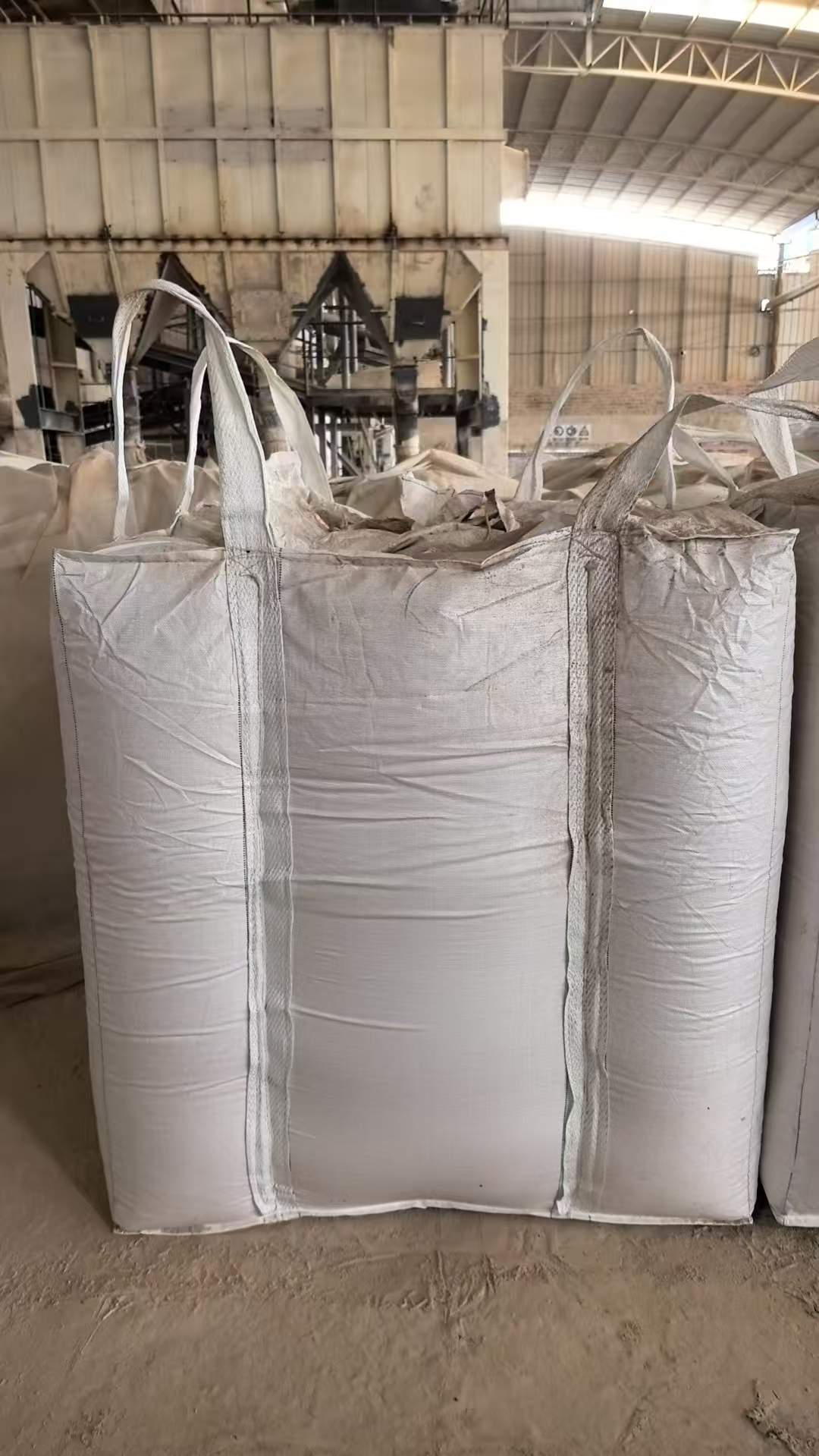

📦 Packaging
50kg bags × 20 bags into 1 large bag (1,000 kg total per unit). Customized packaging available upon request.
