Product Description

Calcined Bauxite is produced by sintering high-quality bauxite ore at temperatures of 1650–1800°C, resulting in a high-alumina, low-impurity refractory material. It features excellent thermal stability, high mechanical strength, corrosion resistance, and wear resistance.

It is widely used in refractory bricks, castables, ceramic kilns, steelmaking furnaces, foundries, abrasives, and high-friction surface coatings (such as road skid-resistant surfaces).

Main Applications

  • Refractory bricks and shaped refractories
  • Monolithic refractories and castables
  • Ceramic kilns and steelmaking furnaces
  • Foundry applications
  • Abrasives and grinding materials
  • High-friction surface coatings (road skid-resistant surfaces)

Technical Specifications

Rotary Kiln Calcined Bauxite

Grade Al₂O₃ (%) Fe₂O₃ (%) TiO₂ (%) CaO + MgO (%) K₂O + Na₂O (%) Bulk Density
(g/cm³)		 Water Absorption (%)
GL-90 ≥89.5 ≤1.5 ≤4.0 ≤0.35 ≤0.35 ≥3.35 ≤2.5
GL-88A ≥87.5 ≤1.6 ≤4.0 ≤0.4 ≤0.4 ≥3.20 ≤3.0
GL-88B ≥87.5 ≤2.0 ≤4.0 ≤0.4 ≤0.4 ≥3.25 ≤3.0
GL-85A ≥85 ≤1.8 ≤4.0 ≤0.4 ≤0.4 ≥3.15 ≤3.0
GL-85B ≥85 ≤2.0 ≤4.0 ≤0.4 ≤0.4 ≥3.10 ≤3.0
GL-83 ≥83 ≤2.0 ≤4.0 ≤0.4 ≤0.4 ≥3.15 ≤3.0
GL-80 ≥80 ≤2.0 ≤4.0 ≤0.4 ≤0.4 ≥3.15 ≤3.0

Shaft Kiln Calcined Bauxite

Grade Al₂O₃ (%) SiO₂ (%) Fe₂O₃ (%) TiO₂ (%) Na₂O (%) Apparent Density
(g/cm³)		 Water Absorption (%)
GL-88 ≥88 ≤2.0 ≤4.0 ≤0.4 ≤0.4 ≥3.15 ≤3.0
GL-86 ≥86 ≤2.0 ≤4.0 ≤0.4 ≤0.4 ≥3.15 ≤3.0
GL-85 ≥85 ≤2.0 ≤4.0 ≤0.4 ≤0.4 ≥3.15 ≤3.0
GL-83 ≥83 ≤2.0 ≤4.0 ≤0.4 ≤0.4 ≥3.0 ≤4.0
GL-80 ≥80 ≤2.0 ≤4.0 ≤0.4 ≤0.4 ≥2.9 ≤4.0
GL-75 ≥75 ≤2.0 ≤4.5 ≤0.5 ≤0.5 ≥2.75 ≤4.0
GL-70 ≥70 ≤2.0 ≤4.5 ≤0.6 ≤0.6 ≥2.7 ≤5.0
GL-60 ≥60 ≤2.5 ≤4.5 ≤0.6 ≤0.6 ≥2.65 ≤5.0
GL-50 ≥50 ≤2.5 ≤4.5 ≤0.6 ≤0.6 ≥2.55 ≤5.0

Available Sizes

Particle Size (Aggregates)

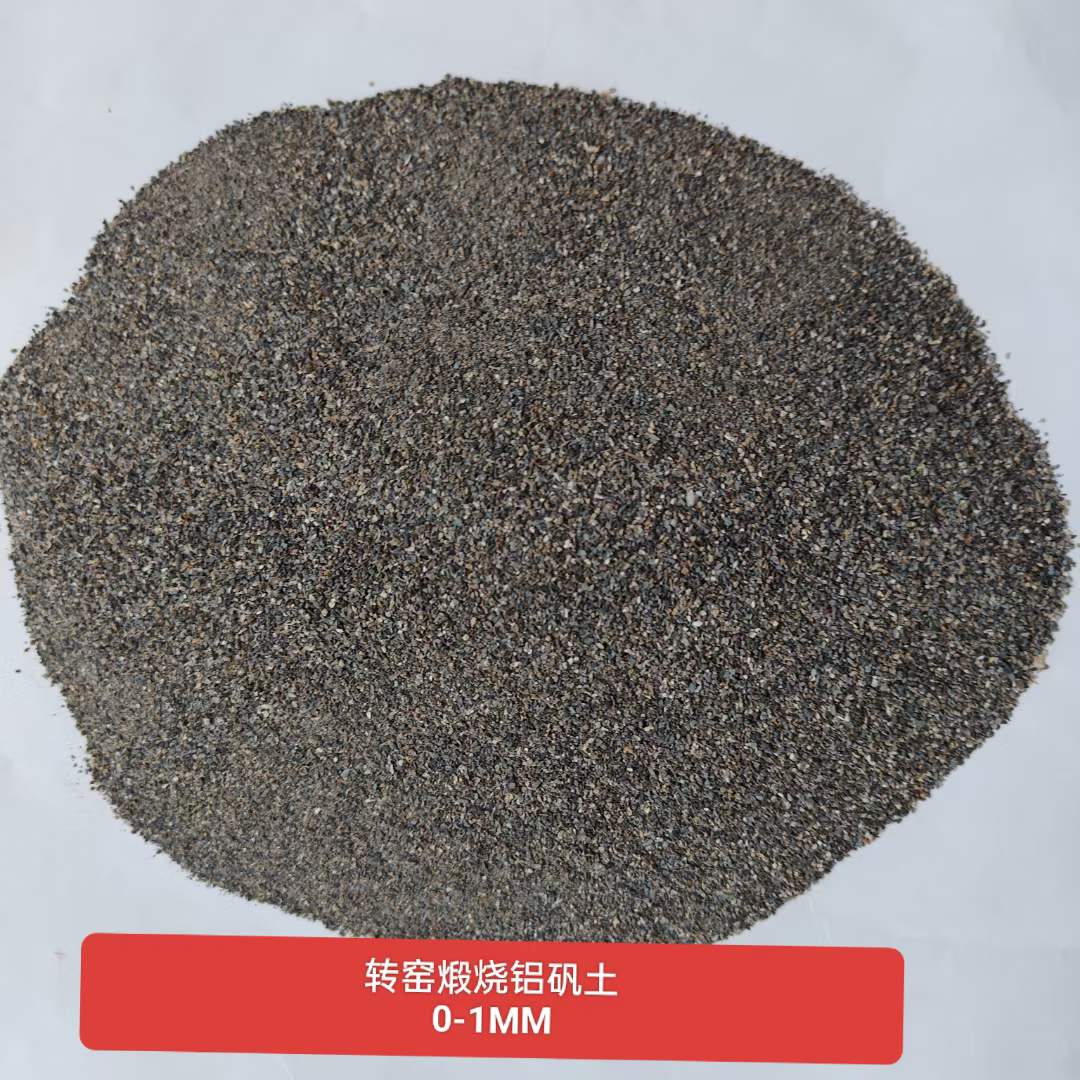

0–1 mm 1–3 mm 3–5 mm 5–8 mm 8–15 mm

Fine Powder (Mesh Size)

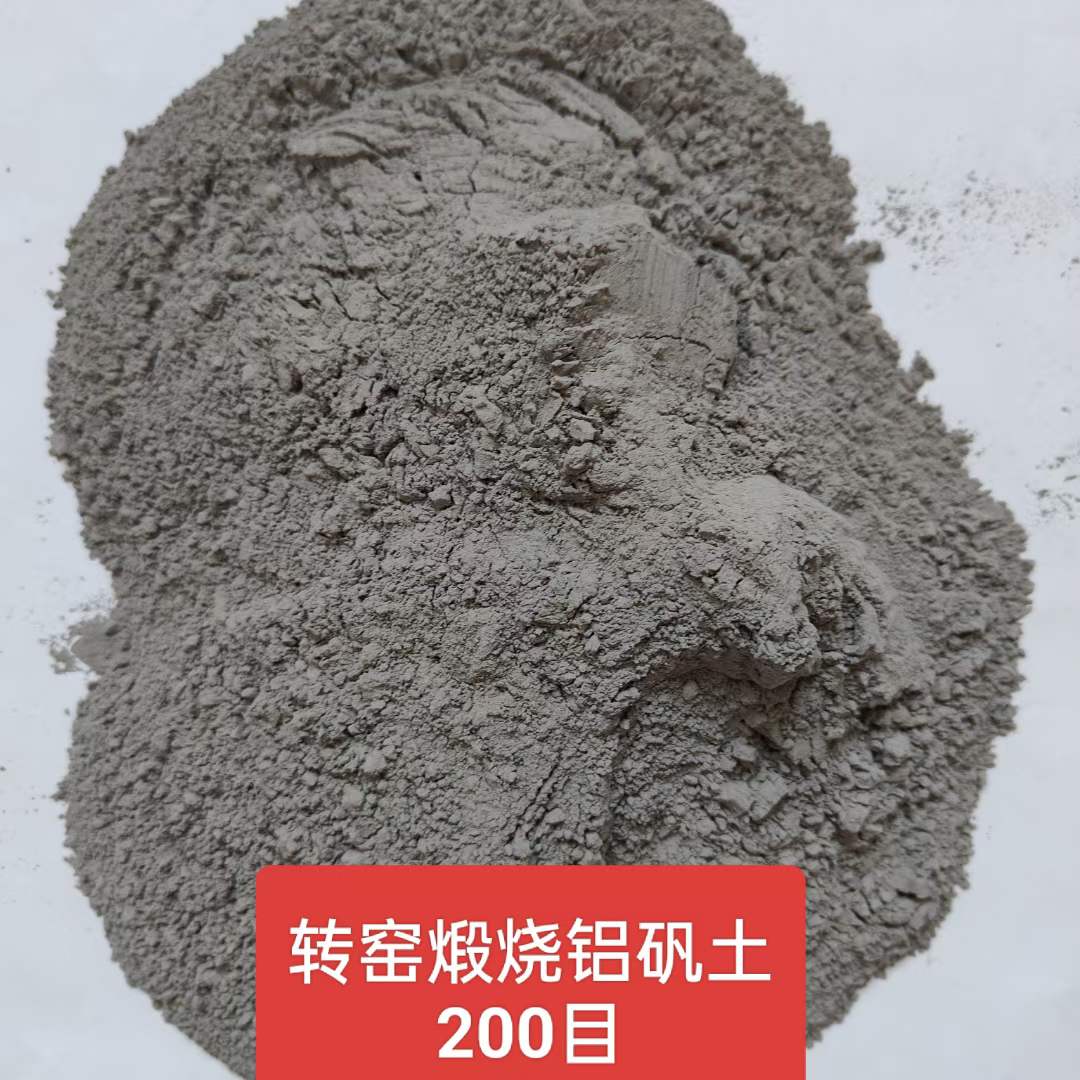

150 mesh 180 mesh 200 mesh 230 mesh 250 mesh 280 mesh 300 mesh 325 mesh

📦 Packaging

25 kg plastic-lined woven bag | 50 kg plastic-lined woven bag

1 MT jumbo bag | 1.25 MT jumbo bag | 1.3 MT jumbo bag | 1.5 MT jumbo bag
